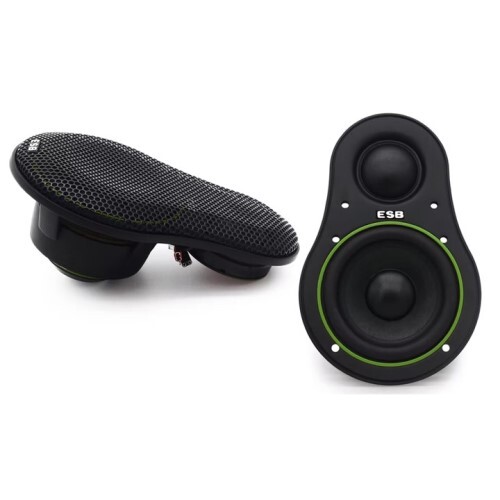

ESB 2.UMA | SPEAKER 2-WAY MID-HIGH UNIT

ESB 2.UMA
SPEAKER 2-WAY MID-HIGH UNIT

Main Features inculde this special and exclusive component driver is a concept conceived way back in 1970’s. Its aim is to concentrate medium and tweeter emissions in a single virtual point. This minimizes phase delays and irregularities at the crossover point. The neodymium magnet is of high grade to eliminate magnetic losses at elevate temperatures and concentrate more force in less space. The tweeter has a silk-impregnated thin fabric dome diaphragm for a smooth sound, with an outer suspension covered with a high-loss damping material to eliminate edge vibration and resonance. Pressed paper cone with waterproof treatment (midrange) offers the ideal marriage between lightness, stiffness, and the ability of the cone to dampen any unwanted vibration. The voice coil uses an aluminum support and a double layer winding technology of copper wire with an aluminum core. Technical Specifications nominal Impedance: 4 Ohm. Nominal Power: 60 (mid), 80 (tw) W. Transient Power: 120 (mid), 160 (tw) W. Frequency Response: 130 Hz ~ 25 KHz. Sensitivity: 86 (mid), 92 (tw) dB 2.83v/1m.
