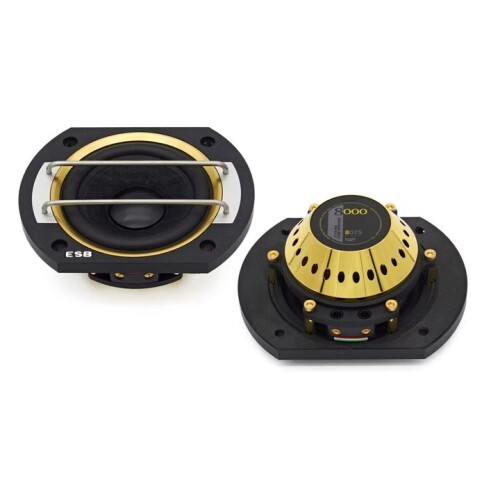

ESB 8.075 | TWEETER 3”/75 MM CONE MIDRANGE

ESB 8.075
TWEETER 3”/75 MM CONE MIDRANGE

Main features include the neodymium magnet motor is optimized with FEA simulation to ensure perfectly symmetrical magnetic flux in both directions of the cone’s run. Motor metal parts are CNC machined from solid, refined material for maximum magnetic flux linearity and minimum magnetic loss. This reduces distortion at high power levels. The 25.5 mm CCAW (Copper Clad Aluminum Wire) double layer voice coil is wound on an aluminum former for exceptional power handling and compression-free reproduction, even for the most demanding musical passages. Non pressed cellulose pulp exponential cone with a vinylester resin coating ensures a perfect balance between rigidity, weight, and self-damping. The cellulose pulp guarantees an extremely natural and linear reproduction in all musical passages with an excellent extension at high frequencies without audible break-up. An aluminum dust cup fixed directly on voice coil former, increases and linearizes the extreme top of the bandwidth.The CNC aluminum basket ensures a drastic reduction of the cone’s back reflections and greater torsional rigidity. High structural and torsional rigidity for perfect parts alignment requires very tight tolerances in the construction and assembling system. This results in better efficiency, more power handling and less distortion. The exclusive rubber surround offers maximum linearity of travel and high reliability in extreme conditions. The axial ventilation system ensures high thermal dissipation capacity, power handling and reliability. The large Conex spider allows a smooth and gentle run at low excursions, and gently holds the cone at high excursions, thus increasing its useful range. The exclusive terminal connection design accepts very large gauge cables. Technical Specifications Nominal Impedance: 4 Ohm; Nominal Power Handling: 120 Watt; Transient Power: 240 Watt; Frequency Response: 95 Hz ~ 16 KHz; Sensitivity: 94 dB 2.83v/1m.
