SH ADX5BP-TA3 | ACCESSORY DUAL TA3 BACK PLATE FOR ADX5D

SH ADX5BP-TA3
ACCESSORY DUAL TA3 BACK PLATE FOR ADX5D

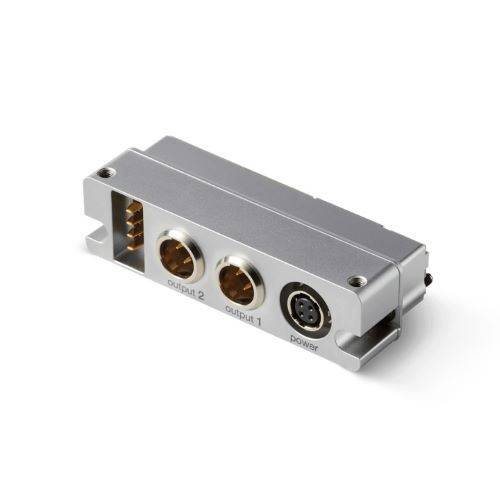

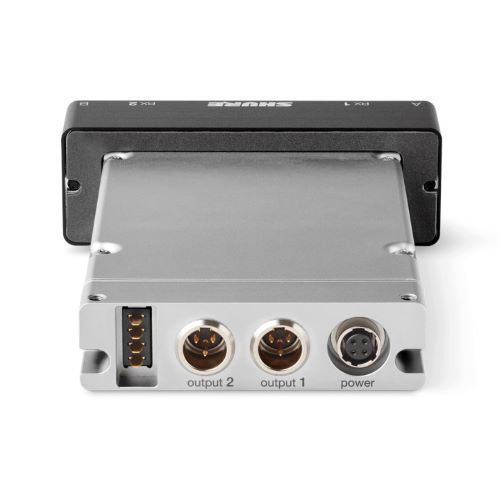

One of the major advantages of the slot-in wireless receiver form factor is that they can be configured for multiple applications, including insertion into a camera or multi-coupler device, or for standalone use where power is provided by a battery distribution system (BDS) or battery sled. The ADX5BP-TA3 Backplate provides stand-alone connectivity for the Axient Digital ADX5D into professional broadcast cameras, multi-coupler devices, and battery distribution systems (BDS). It includes a 4-pin connector for mating with a Shure battery sled, two TA3 (mini 3-pin XLR) audio output connectors, and a 4-pin locking Hirose power input connector. Captive Phillips-head screws provide simple installation to the ADX5D. Providing two channels of audio output, ADX5BP-TA3 Output?1 and 2 are both analog. However, Output 1 can be configured for digital AES3 output in the device menu (analog Output?2 is disabled when AES3 is selected). Key details include TA3 Backplate for the Axient Digital ADX5D dual-channel portable wireless receiver. 2 x TA3 analog outputs. Output 1 can be configured as two-channel AES3 digital outputs (Output 2 is disabled when AES3 is selected). 1 x 4-pin power connector for battery sled use. 1 x Hirose 4-pin power connector. Input voltage: 6V DC to 18V DC. Captive Phillips head screws provide simple installation to the ADX5D. Compatible with the Shure WA451 audio cable (TA3F-to-XLR).
