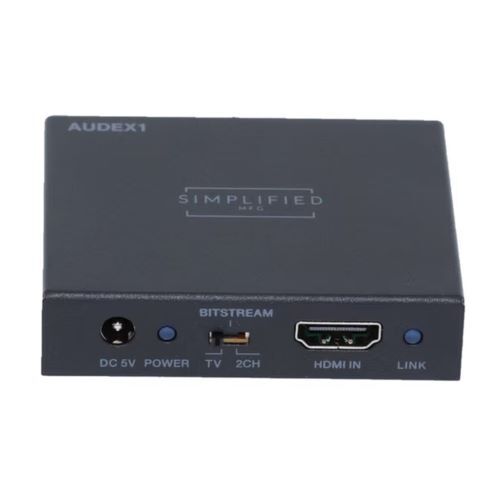

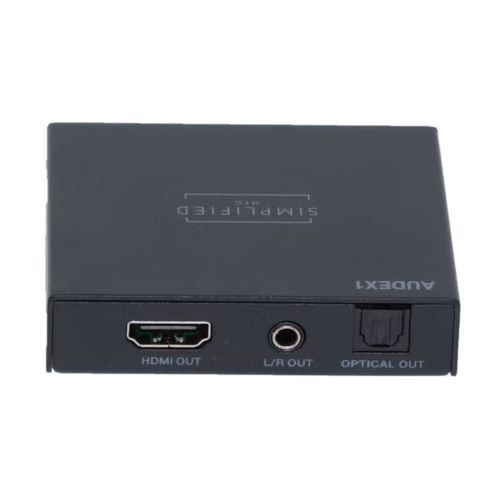

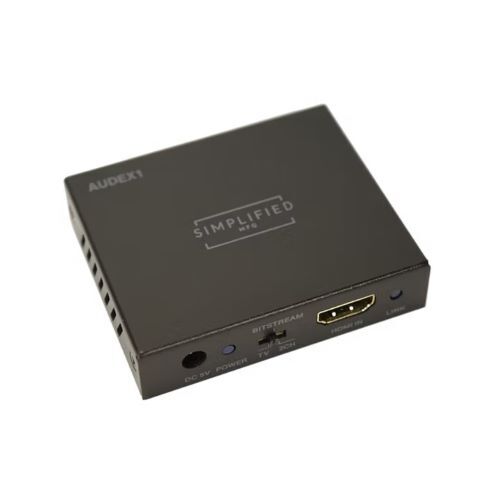

SMP AUDEX1 | AUDIO EXTRACTOR HDMI 2.0B 18GBPS

SMP AUDEX1
AUDIO EXTRACTOR HDMI 2.0B 18GBPS

HDMI 18Gbps Audio Extractor that supports HDR/DolbyVision.The AUDEX1 HDMI 18Gbps Audio Extractor extracts audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI connections support video resolution up to 4K2K@50/60Hz (YUV444) while supporting HDR 10+, and DolbyVision pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported. ?Primary Use: to extract audio from a media player and then put that audio on a S/PDIF (for multi-channel and 3.5mm mini-jack for stereo). Features include HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant. Video resolutions up to 4K2K@50/60Hz (YUV444). Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio. Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH. Supports HDMI High Bit Rate(HBR) audio pass through. Audio sample rates up to 192kHz. passes through HDR 10+ and DolbyVision. 3-Year warranty.
