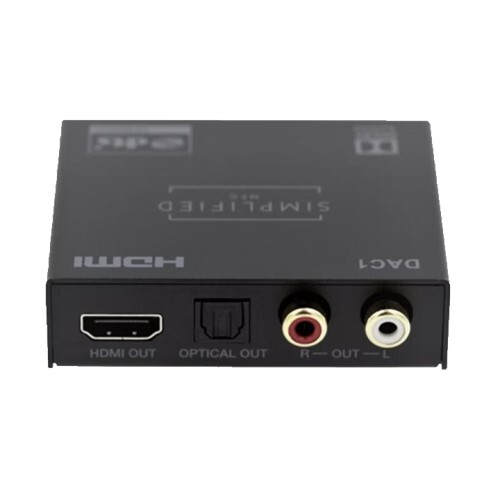

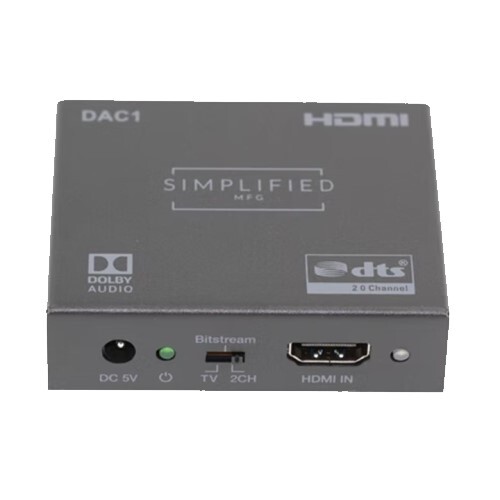

SMP DAC1 | AUDIO EXTRACTOR WITH DOLBY DOWNMIX CAPABILITY HDMI 2.0B 18GBPS

SMP DAC1
AUDIO EXTRACTOR WITH DOLBY DOWNMIX CAPABILITY HDMI 2.0B 18GBPS

HDMI 18Gbps Audio DownMixing Device that supports HDR/DolbyVision. The DAC1 HDMI 18Gbps Audio Extractor extracts audio signals (Dolby 5.1 and DTS 5.1) and downmixes the signal to stereo from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI connections support video resolution up to 4K2K@50/60Hz (YUV444) while supporting HDR 10+, and DolbyVision passthrough. HDCP 2.2 and CEC bypass are supported. ?Primary Use: to extract audio from a media player and then convert the multichannel audio to stereo. Features include HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant. Video resolutions up to 4K2K@50/60Hz (YUV444). Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio. Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH. Supports HDMI High Bit Rate(HBR) audio pass through. Audio sample rates up to 192kHz. passes through HDR 10+ and DolbyVision. 3-Year warranty.
