SMP EX1L | HDMI EXTENDER KIT 4K HDMI 2.0B (18GBPS) 120M

SMP EX1L
HDMI EXTENDER KIT 4K HDMI 2.0B (18GBPS) 120M

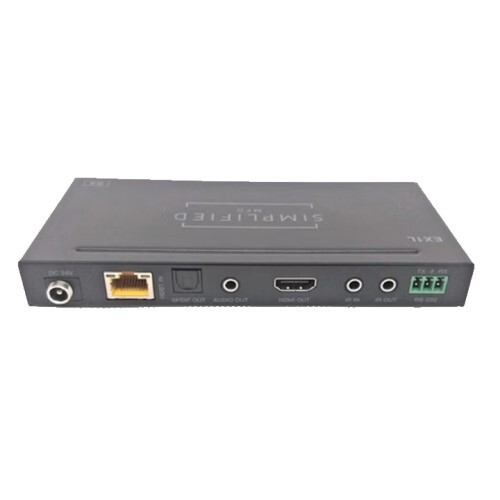

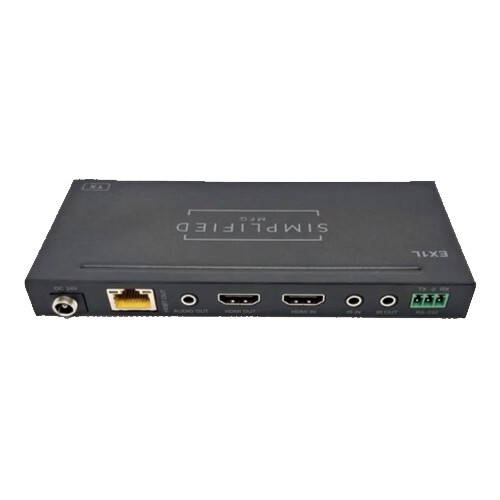

The EX1L 18Gbps HDMI extender has 3 times the distance of most extenders in its price range! The EX1L can extend your HDMI signal over 492 ft/150 meters to a compatible 1080p display or 394 ft/120 meters to a HDMI 2.0b 18Gbps compatible display. The EX1L supports HDR10+ and DolbyVision as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18Gbps HDMI 2.0b signal. There are audio breakouts on both the transmitter and receiver. With 120m of capability, the EX1l can overcome the punch downs and other wiring challenges often seen. Try one, they are reasonable and awesome!? Primary Use: This is the workhorse/day-to-day extender that supports the entire HDMI 2.0b format, has 12V IR for ease of installation with third party control, and audio breakouts for easy integration with audio systems. Cat5e may be used, but some loss of distance may occur. Features include HDMI 2.0b (18Gbps). HDCP 2.2, HDCP 1.4 and DVI compliant. Video resolutions up to 4K2K@50/60Hz (YUV444). HDR8/10/10+ and DolbyVision Pass-thru. Supports longer distances (120m at 4K/UHD and 150m at 1080p). Supports CEC Pass-thru. HDMI loop out at TX. Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed). Audio breakout [3.5mm at TX, optical and 3.5mm at RX]. Bidirectional 12V Infrared control signal together with the HDMI signal. Works with many control system's IR. Transfer Bidirectional RS232 control signal together with the HDMI signal. Supports all high-definition audio formats including Dolby+/Atmos. 3-Year warranty.
