SMP EX3-8K | CAT EXTENDER 40GBPS 8K OR 4K@120HZ. ON W/1GBPS ETHERNET, EARC, USB2.0 AND MORE

SMP EX3-8K
CAT EXTENDER 40GBPS 8K OR 4K@120HZ. ON W/1GBPS ETHERNET, EARC, USB2.0 AND MORE

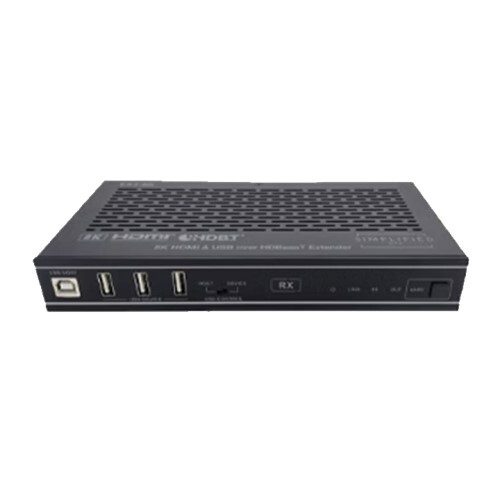

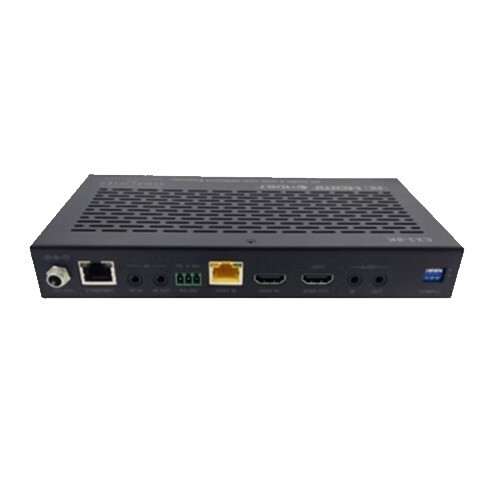

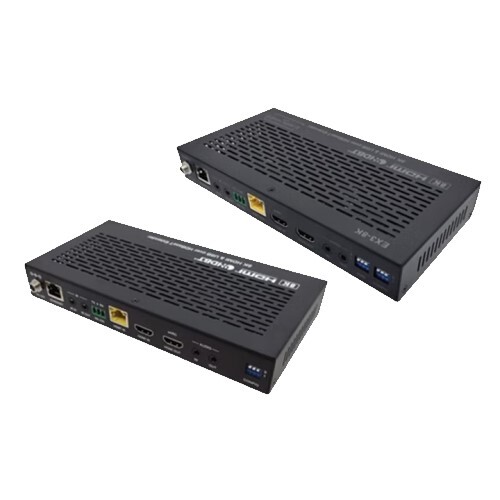

The EX3-8K Extender is a device which can extend your 8K or 4K@120Hz. HDMI signal over 330ft/100meters to a compatible 8K/4K display. The EX3-8K also supports eARC/ARC, 1Gbps Etherenet pass-thru, USB 2.0, 2-Way IR, RS-232, and a separate stereo audio pass-thru (both directions). This is the most capable 8K, on category cable HDMI extender, on the market. Other advanced features include, EDID management, configurable RS-232 functions (can reset extender with a command), and even a 1080p @24Hz video return ability. Primary Use: Extending High bandwidth 8K or 4K@120Hz. HDMI AV and a myriad of control (including USB) and audio functions up to 330ft on category cable. The EX3-8K will operate on Cat 6 at a shorter distance of 50-60m. Features include HDMI 2.1 (40Gbps). HDCP 2.3/2.2/1.4 and DVI Compliant. Uncompressed eARC support. USB 2.0 (Client or Server from either end). 1Gbps Ethernet Pass-Thru. Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed). Bidirectional 5V or 12V Infrared control signal together with the HDMI signal. Transfer Bidirectional RS232 control signal together with the HDMI signal. Separate stereo pass-through (both directions). RS-232 pass through can be routed to the extender to update and do basic commands, like a reset. Supports all high-definition audio formats including Dolby+/Atmos. eARC/ARC bandwidth can be used for 1080p @24Hz video return. 3-Year warranty.
