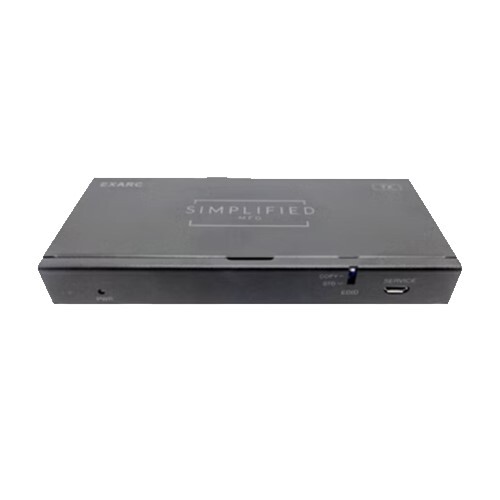

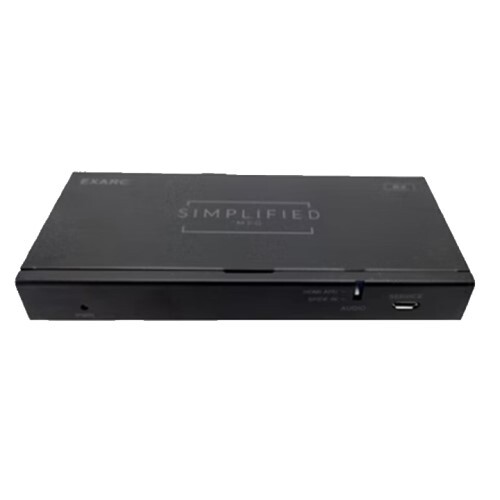

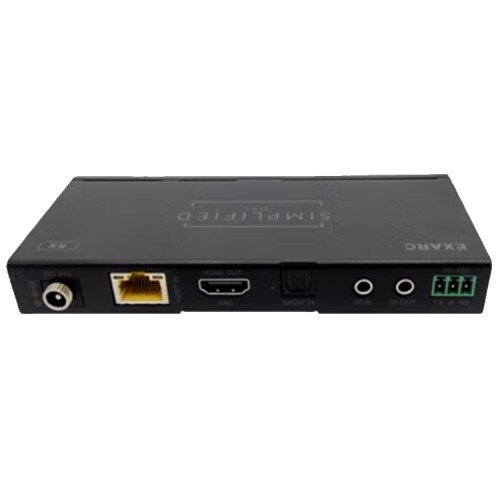

SMP EXARC | EXTENDER HDMI OVER CAT6 -4K4:4:4 TO 131FT/1080P TO 230FT WITH ARC VIA HDMI OR OPTICAL

SMP EXARC
EXTENDER HDMI OVER CAT6 -4K4:4:4 TO 131FT/1080P TO 230FT WITH ARC VIA HDMI OR OPTICAL

The EXARC 18Gbps HDMI Extender is a device which can extend your HDMI signal over 230t/70meters to a compatible 1080p display, 131ft/40meters to a HDMI 2.0b 18gbps compatible display. The EXARC supports HDR10+ and DolbyVision as well as the entire HDMI 2.0b standard. The multifunction ARC/Audio feature makes the EXARC great when you need to bring audio back to the TX/Rack from the display. The ARC or S/PDIF [optical] can be output at the TX via the HDMI cable (ARC) or via the S/PDIF (optical) output. It also supports Bidirectional 12V Infrared control and RS232. Primary Use: Extending HDMI AV signals along with control, ARC or S/PDIF return from display over a single Category cable. Cat5e may be used, but some loss of distance may occur. Features include ARC is fully supported to bring multichannel audio back to your rack or AVR. HDMI 2.0b (18gbps). HDCP 2.2, HDCP 1.4 and DVI compliant. Video resolutions up to 4K2K@50/60Hz (YUV444). HDR10+ and DolbyVision Support. Supports CEC Pass-thru. Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed). Optical S/PDIF can be used in place of ARC. Bidirectional Infrared control signal together with the HDMI signal. Transfer Bidirectional RS232 control signal together with the HDMI signal. Supports all high-definition audio formats including Dolby+/Atmos going to the display. Supports up to 5.1 audio on the ARC circuit. 40m at 4k/UHD. 3-Year warranty.
