SMP EXMICROKVM | EXTENDER KVM HDMI 4K(18GBPS) 50M(164FT) W/USB

SMP EXMICROKVM
EXTENDER KVM HDMI 4K(18GBPS) 50M(164FT) W/USB

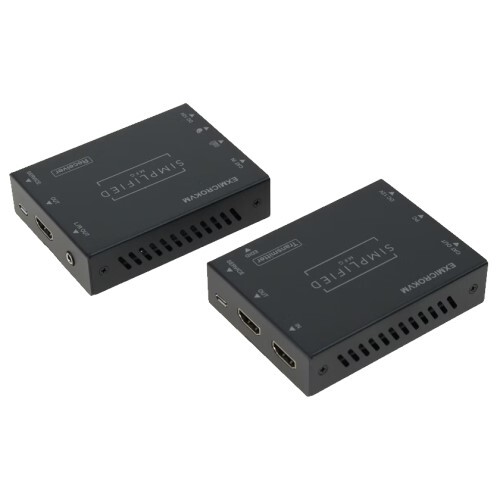

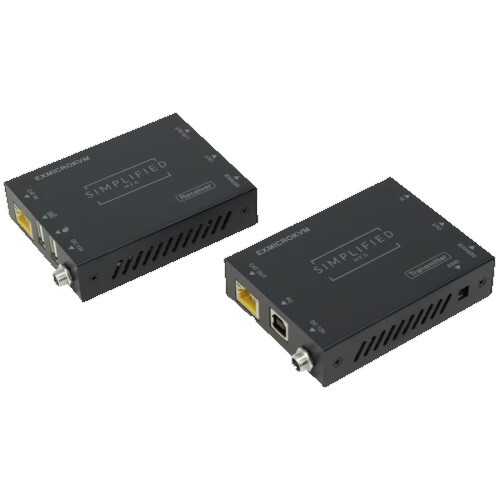

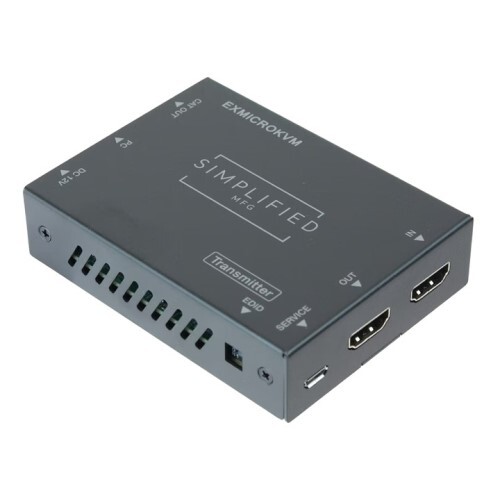

The EXMICROKVM can extend an HDMI2.0b (18Gbps) high-definition audio and video signal and two-way IR up to 50 meters (164 feet) at 4K or 1080p between transmitter and receiver over a single Cat5e/6/7 cable. The EXMICROKVM supports resolutions up to 4K2K@60Hz 4:4:4, up to 18Gbps, and HDCP 2.2/1.4. In addition, the EXMICROKVM extender supports USB 1.1 (suitable for keyboard/mouse), 3.5mm audio breakout at TX and the ability to override EDID requests of the display. The EXMICROKVM extender is one of, if not the most efficient HDMI extenders available today. The current draw is typically less than one third the normal current draw making this device more efficient and smaller.? Primary Use: NVR or KVM needs over distance. Features include HDMI 2.0b (18Gbps). HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant. Supports input and output video resolution up to 4k2k@60Hz 4:4:4 up to 18Gbps. Supports HDR/HDR+. USB 1.1 Pass-thru (Type-B host at TX and two Type-A at RX). 2-Ch. LPCM 3.5mm audio breakout. EDID override (copy display/ 1080p 2 ch./ 4K 2ch./ copy loop out. Single power supply – can be powered from either the RX or TX. 3-Year warranty.
