SMP M1616KT | CHASSIS FULLY POPULATED 16X16 WITH RX DEVICES - KIT

SMP M1616KT
CHASSIS FULLY POPULATED 16X16 WITH RX DEVICES - KIT

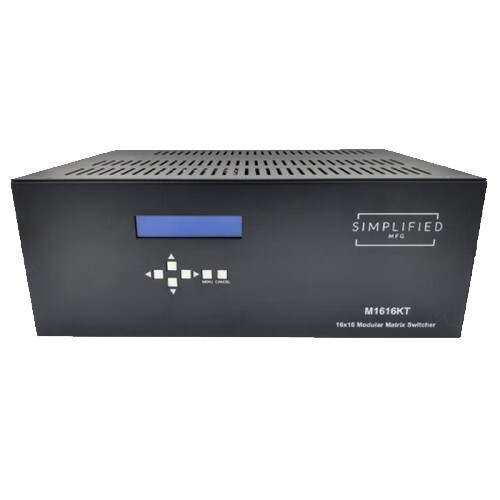

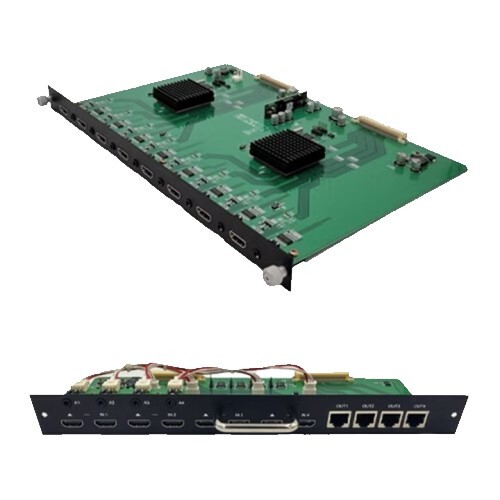

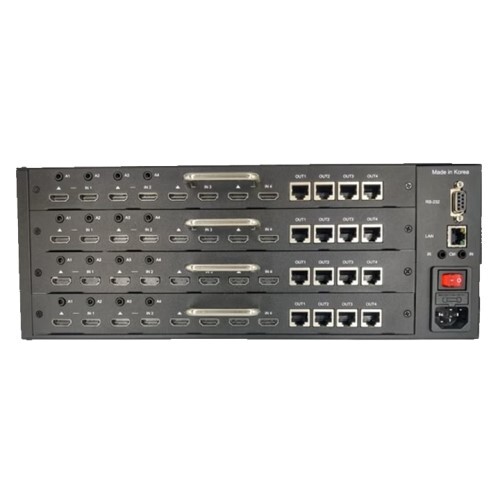

The M1616KT is a scaling, modular/stackable matrix that supports HDR10+ and 4K at 18Gbps. The kit includes the matrix chassis, input/output cards, and 16 compact RX devices so that the device is a 16x16 matrix with HDMI pass-through. This means two or more can be linked to make a 16x32/48/64/80/96 etc. The compact receivers are 50m/164ft. at 4K and 70m/230ft. at 1080p. They also have 1-way IR from the input at the matrix chassis to an output at the RX to control the display. The scaling function makes it easy to integrate 1080p and 4K display in the same application with no settings having to be made. Simply plug and play! Perfect for hospitality installations and now can be controlled by SBS Controls for an intuitive easy to operate system with little to no training on its operation. Features include HDMI2.0, HDCP2.2/HDCP1.4 compliant. Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0. Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats. Configurable in banks of four. Device can become a 12x16 etc. HDMI input pass-though allows matrices to be "stacked" making 16x32/48/64/80/96/etc. Scaling outputs makes integrating 1080p and 4K displays easy. Supports HDR/HDR 10+. Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats. IR pass though from chassis input to RX device for display control. Smart EDID management. Control of the M1616KT can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control). A 2 Year Warranty.
