SMP M44MV | MATRIX HDMI 4X4 18GB FAST SWITCHING MULTIVIEW AND VIDEO WALL PROCESSING

SMP M44MV
MATRIX HDMI 4X4 18GB FAST SWITCHING MULTIVIEW AND VIDEO WALL PROCESSING

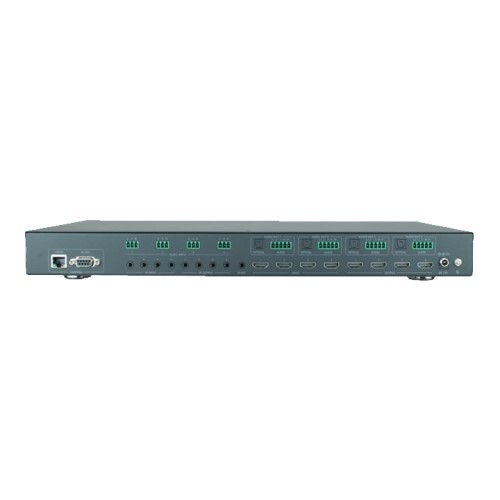

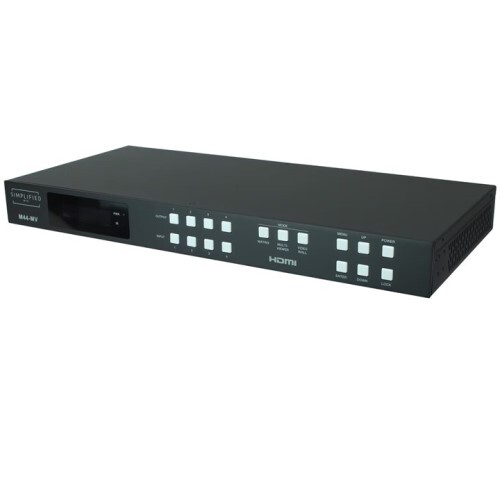

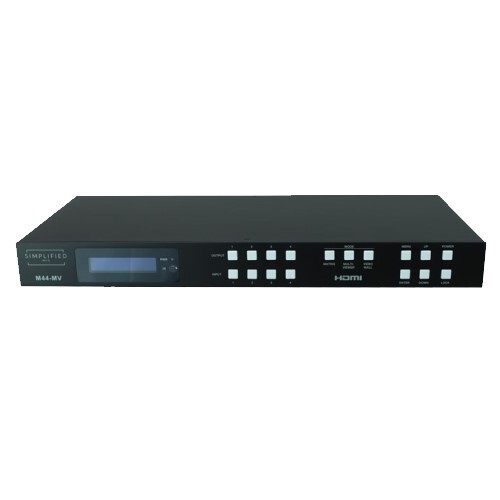

The M44-MV is a Scaling HDMI 2.0b (18Gbps) 4 x 4 HDMI matrix that supports video wall and Multiview functions. The M44-MV is a fast switch (switching functions are instantaneous). Resolutions, color space, HDCP, and EDID are fully editable. There are four HDMI inputs and 4 HDMI outputs. The M44-MV can be used as a matrix with Multiview functions, a video wall processor, or any combination of the above. In addition, the audio functions are incredibly diverse. Audio can be bound to input, output, ARC, or in a matrix function.? Primary Use: Varies as it is a fast switch, video wall processor and Multiview unit in a single device. Features include HDMI 2.0b (18Gbps) and HDCP 2.2 compliant. Each output can scale independently from each other, including the HDMI. DolbyVision and all HDR formats are supported. 4 HDMI output ports support 18Gbps lossless uncompressed video. Supports 12 different viewing options in multiview mode and 9 options in video wall mode. Audio functions include, bind to input, bind to output, ARC, and matrix function. ARC Audio can be returned from the display to the matrix via HDMI cable or ARC over category cable extender. IR can be routed through the matrix independently as well. Supports video resolution up to 4K@60Hz 4:4:4 (can be fully adjusted). The M44-MV supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio. Intelligent EDID management combined with scaling, color space options, and HDCP selection, makes the M44-MV easy to use with multiple displays with different resolutions and/or capabilities. Control options include via the front panel, IR remote, web GUI, or control with a third-party control device via IR, RS232, or LAN. Advanced EDID management. 3-Year Warranty.
