SMP M88-8K | MATRIX HDMI 8X8 48GB WITH SCALING

SMP M88-8K
MATRIX HDMI 8X8 48GB WITH SCALING

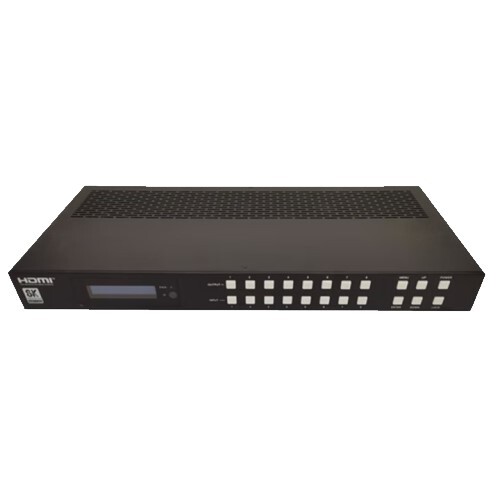

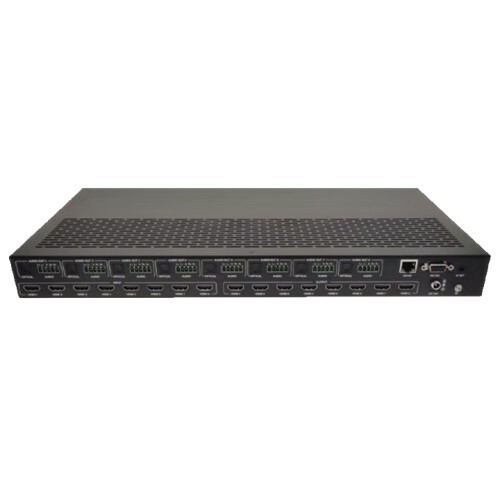

The M88-8K is a Scaling HDMI 2.1 (48Gbps) 8 x 8 HDMI and HDBaseT matrix. There are eight HDMI inputs for 8 sources and there are 8 HDMI outputs that feature the ability to scale (8K/4K/1080p). Each output can scale to the needs of the display/zone, and the appropriate HDMI extender can be used for that zone. Audio extraction can be selected per zone (from input/from output/from ARC). The M88-8K is a space-saving 1 RU design. The M88-8K is designed to be used in a myriad of applications. The ability to switch any HDMI signal up to 48Gbps and the selectable audio extraction (Optical/Balanced/Unbalanced) make the M88-8K a very flexible matrix. Each zone can be paired with the appropriate extender by utilizing the scaling. For example, one zone can be 8K and use the EX3-8K 40Gbps on CAT extender, while other zones could be set to 4K or 1080p and use other appropriate devices for those zones. The balanced output can mate up with the DTE-ENC to encode the balanced output into Dante as well. It should be noted that the M88-8K does support 4K @120Hz. as well.
