SMP MX44KT | MATRIX KIT HDMI 4X4 50M (@4K) W/SCALING W/4 RX

SMP MX44KT
MATRIX KIT HDMI 4X4 50M (@4K) W/SCALING W/4 RX

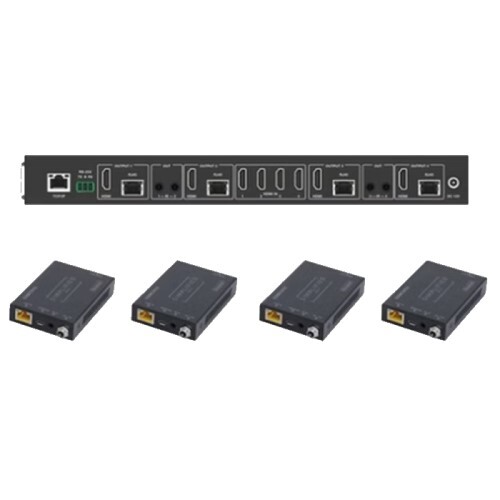

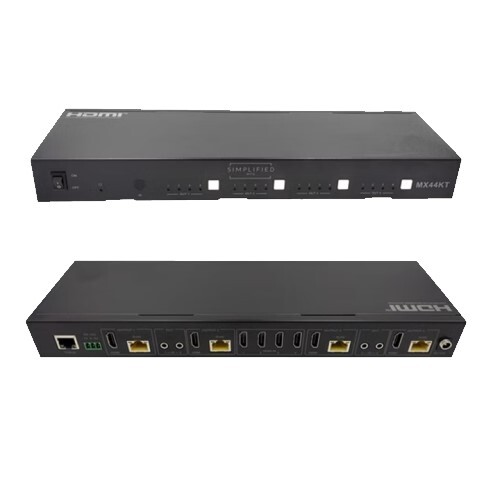

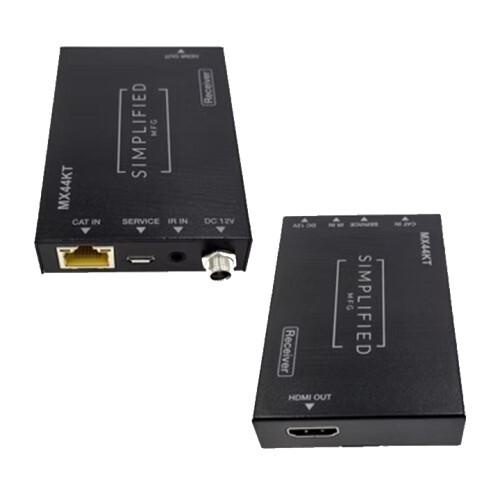

The MX44KT is a sub 1RU (see dimensions in specs) 18Gbps 4x4 HDMI Matrix can connect four HDMI sources up to eight displays. The MX44KT features four mirrored HDMI/Category Cable outputs. Each of the 4 output channels feature an HDMI and UTP output that can scale with each other by channel. The MX44KT supports the transmission of 4K (18Gbps) video up to 50m/164 ft @ 1080p and up to 70m/230 ft @ 4K. The MX44KTsupports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD Master Audio. The kit includes four small receivers that connect to the matrix via a category cable to each of the CAT-Cable outputs to extend the HDMI signal up to 70m/230ft. at 1080p and 50m/164ft at 4K. Each HDMI/CAT output supports Auto/Bypass/4K2K to 1080P downscaling together by channel. The MX44KT can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI. Features and benefits include HDMI2.0, HDCP2.2/HDCP1.4 compliant. Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0. 50m @ 4k and 70m @ 1080p. Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats. Innovative web GUI. Parallel HDMI/UTP outputs (scale together). Scaling outputs makes integrating 1080p and 4K displays easy. Supports HDR10+/DolbyVision (DolbyVision only on HDMI, UTP supports up to HDR10+). Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats. Smart EDID management. Control of the MX44KT can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control). 3 Year Warranty.
