SMP REX2.1 | EXTENDER HDMI OVER CAT CABLE 1080P 230FT(70M) 4K30 164FT/50M CAT6/5E HDMI LOOP THRU
SMP REX2.1
EXTENDER HDMI OVER CAT CABLE 1080P 230FT(70M) 4K30 164FT/50M CAT6/5E HDMI LOOP THRU
Click image to enlarge
SMP REX2.1
EXTENDER HDMI OVER CAT CABLE 1080P 230FT(70M) 4K30 164FT/50M CAT6/5E HDMI LOOP THRU
- UM : EACH

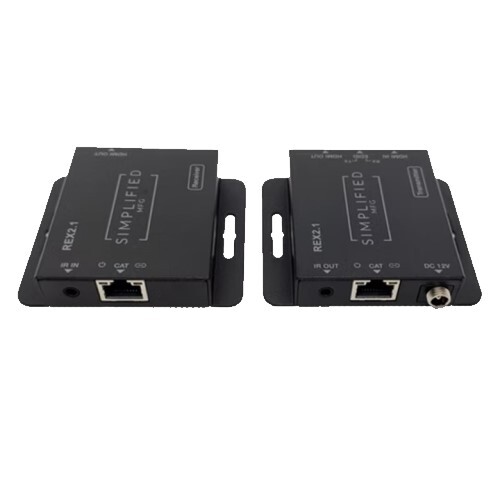

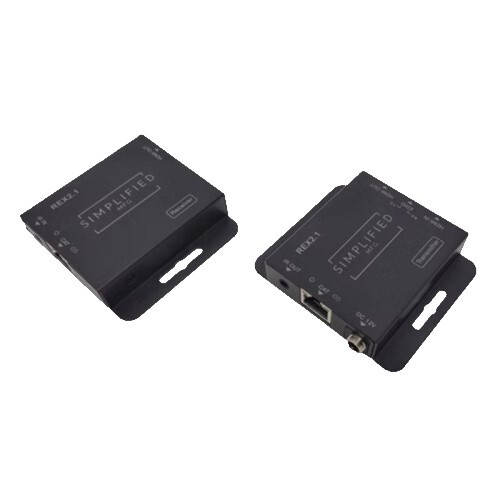

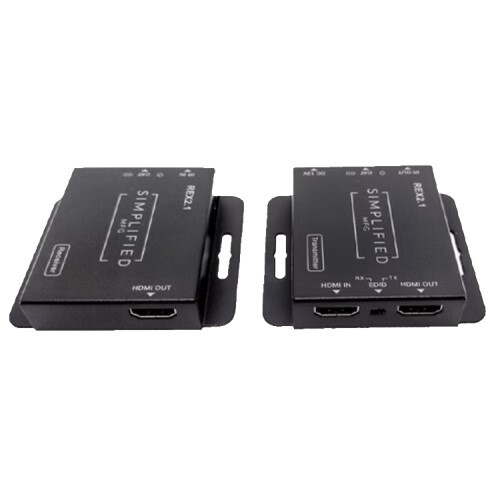

The REX2.1 is a HDMI/ HDCP 1.4 Extender over Single Cat5e/6 with IR extends high definition Audio/Video signals and IR, at a distance of up to 70m/230 ft @1080p and 50m/164ft @4K (24/25/30Hz., HDCP 1.4 Only) over a single Cat5e/6 cable. The REX2.1 is small, and robust. The 10.2Gbps capability makes it a very reliable and powerful 1080p extender with the added benefit of supporting some 4K signals. In addition, the extender is also equipped with IR pass-through which allows for source control. ?The REX2.1 extender includes two units: a transmitting unit and a receiving unit. The transmitting unit is used to capture the HDMI input with IR carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for decoding the transmitted HDMI signal. The extender cost effective HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for Set top boxes, live performance and/or security cameras. Cat5e may be used, but some loss of distance may occur. Features include HDMI 1.4b (10.2Gbps). HDCP 1.4 and DVI compliant. Video resolutions up to 4K2K@24/25/30Hz (YUV444). CEC Pass-Thru. HDMI loop out (can be used to manipulate EDID or to a local display). EDID management. IR Return for RX to TX (kit included). Compact design for easy placement. Supports up to 7.1 digital audio. 3-Year warranty.
| Product Specifications | |
|---|---|
| Brand | SIMPLIFIED MFG |
×
×
×
