SMP RM44C | MATRIX 4X4 HDMI TO HDMI

SMP RM44C
MATRIX 4X4 HDMI TO HDMI

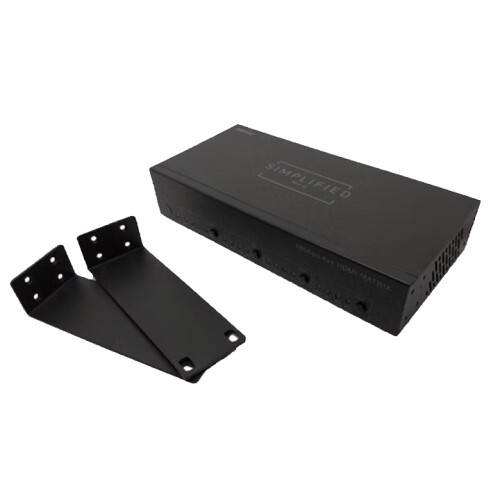

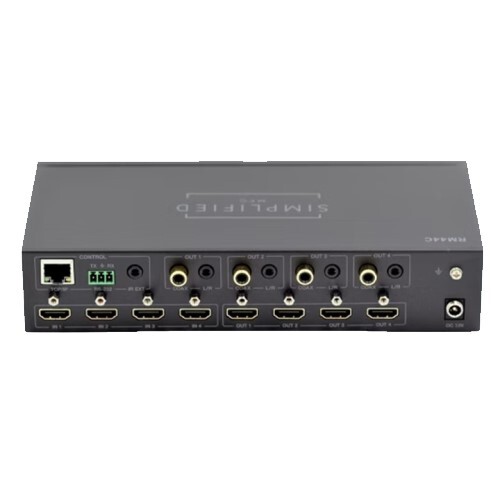

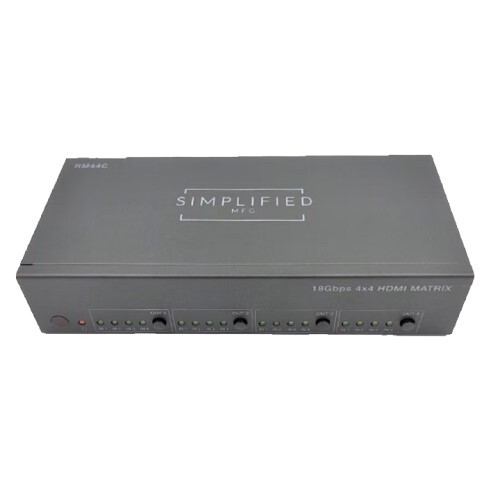

The RM44C is a sub 1 RU HDMI Matrix switch that features four HDMI inputs and four HDMI outputs. It provides true matrix routing for HDMI signals. It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD (4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio. The RM44C will also pass HDR High Dynamic Range information as well (8, 10, 10+, DolbyVision). Each output has scaling options for easier integration of unlike displays. In addition, there is a CEC control feature allowing the matrix to turn on the displays. Features are adjustable in the Web GUI with both Admin and User login settings. 1 RU mounting kit is included. Features and benefits include HDMI2.0, HDCP2.2/HDCP1.4 compliant. Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0. Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats. Innovative web GUI. ARC can be routed to S/PDIF outputs. Scaling outputs makes integrating 1080p and 4K displays easy. Supports HDR10+/DolbyVision. Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats. Simultaneous HDMI and COAX S/PDIF (S/PDIF can be assigned to ARC output). Smart EDID management. Control of the RM44C can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control). 3 Year Warranty.
