TLV 451282 | AMPLIFIER DTKOM LAUNCH AMPLIFIER B-LAN CAPABLE (52DBMV)

TLV 451282
AMPLIFIER DTKOM LAUNCH AMPLIFIER B-LAN CAPABLE (52DBMV)

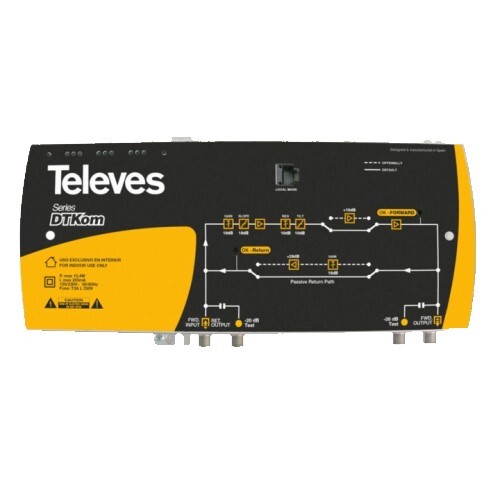

High-power multiband amplifier for CATV operator distribution. Its expanded bandwidth (49 MHz-1002 MHz) offers an user selectable gain of 30/40dB. Equipped with switchable return channel (5 Mhz-36 MHz), which has a return gain of 28dB when active mode is selected. The unit can be controlled local or remotely, allowing the technician to test, to modify and to save unit parameters: Via local, with the RJ45 front connector, using the Televes universal programmer Ref. 7234. Via remote, according to B_LAN standards by commands via distribution cable. Key descriptions include Forward channel up to 1 Ghz. Designed using Power Doubling technology, which guarantees levels in the 69dBmV range for terrestrial signals. Includes a high-performance low-power consumption switch-mode power supply. High-screening Zamak chassis. The design facilitates appropriate cooling. Switched configurable gain (high/low), and high output level. Equipped with equalizer, pre-equalizer and gain control. Intuitive front cover, including adjustments and block diagram. Output signal LED indicator.
